We’re Going Back Up The Branch! (I)

The long journey back to the Bonded Warehouses at Ashton Avenue Bridge took another step in the right direction last weekend.
The last train ran here in 2015, when the station was closed to make way for the Metrobus route over the bridge. Since then, progress has been hampered firstly by the delay in building the bus route, followed by the collapse of the wall along the New Cut in 2020. This has now been fixed, but Vauxhall Bridge was then closed for refurbishment for 2 years, which has resulted in the track under the bridge being blocked by scaffolding.


The railway has been stockpiling assets to return down the branch, with multiple deliveries of concrete sleepers over the past year.

Staff and volunteers have been putting the time in, prepping the area around the station now that the contractors have moved out. Track that had been stored alongside A Bond has been pulled out, sleepers sorted into no-hopers vs. reusable ones, and roughly laid along the trackbed.

Last Saturday we were able to take another step forward. More sleepers were moved into position and lined up from the stub of track remaining on the West side of the slip, then Larry dragged two 60-foot rails out of the pile and with much lifting, levering and a gentle tap from the bucket, managed to drop the rails into the chairs.

It may only be one track panel so far, but it gave an immense feeling of satisfaction and progress. The next one is likely to be another 60-footer. The aims here are to build a single line from the railhead to the platform in the first instance, for works trains. This will be followed by relaying the area outside A Bond to allow access to the Barn and the run-round loop. There is some re-grading to be done as the platform area is much higher than the running line, and the old railhead is lower than the new yard, so will need to be built up.
Several passers-by had positive comments while we were working, with the best one being “Does this mean we’re getting our train back?”

Whilst the trackwork was going on, the jungle that had grown in front of the shed was cut back, revealing the track underneath! Also a rare view of the Fox, Walker steam locomotive, LMS Brake Van and Ruston inside the shed. This was the victim of a break-in which resulted in every window being smashed and all the side panels taken off and thrown on the floor. Another fixer-upper!

More trackwork and first running weekend of the year

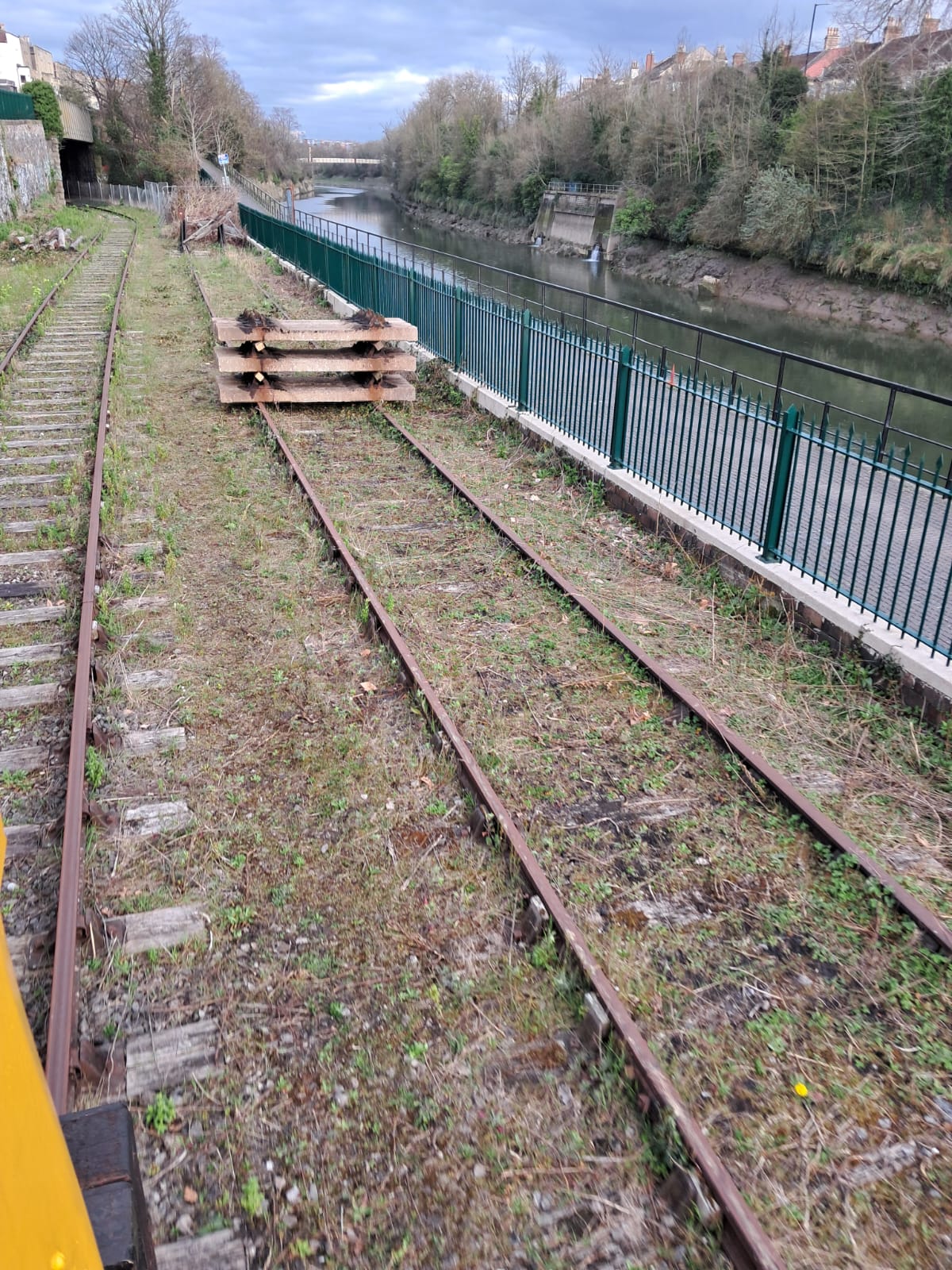

Last weekend more preparation for the relaying of the New Cut branch to A Bond warehouse took place along with track maintenance ahead of the first running weekend of the year this coming Saturday and Sunday.

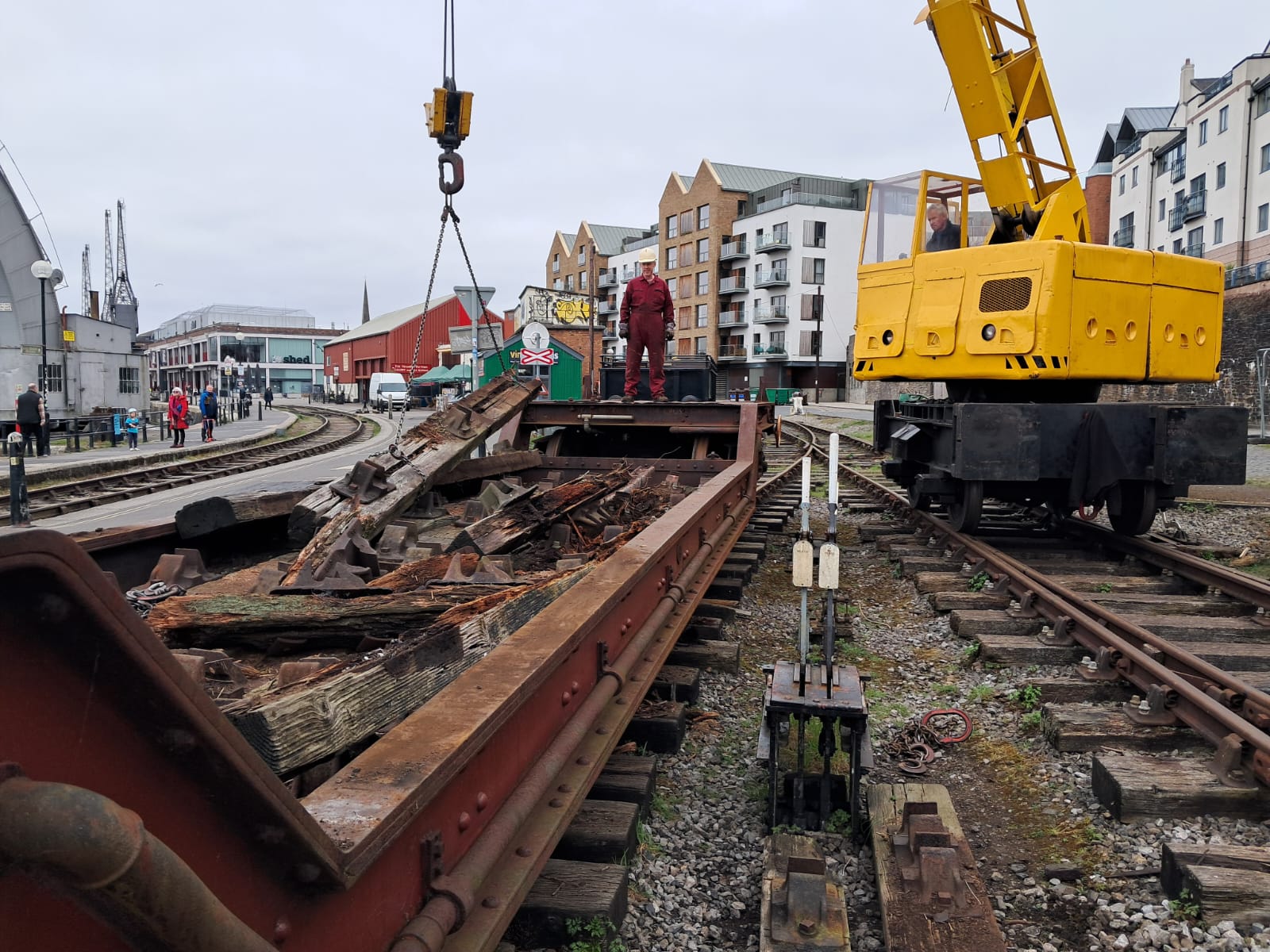

The sleepers were unloaded on to one of the flat wagons earlier in the week. The Coles Crane was to be used but needed to be on the East side of the wagon, so Larry was used to push the truck up the quayside and enable the Coles to couple up. The Coles then propelled the wagon up the branch to the siding alongside Cumberland Road bridge.

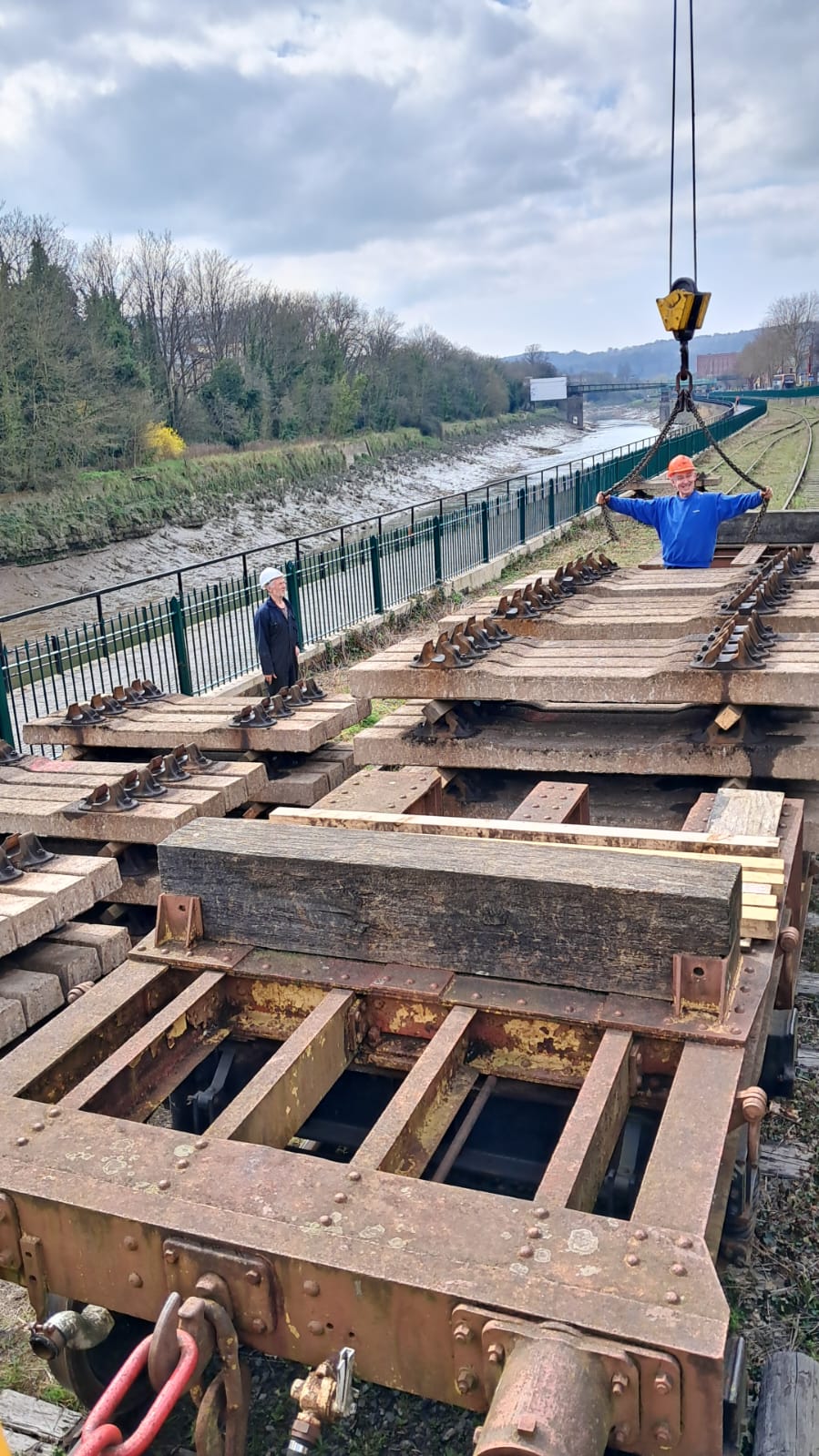

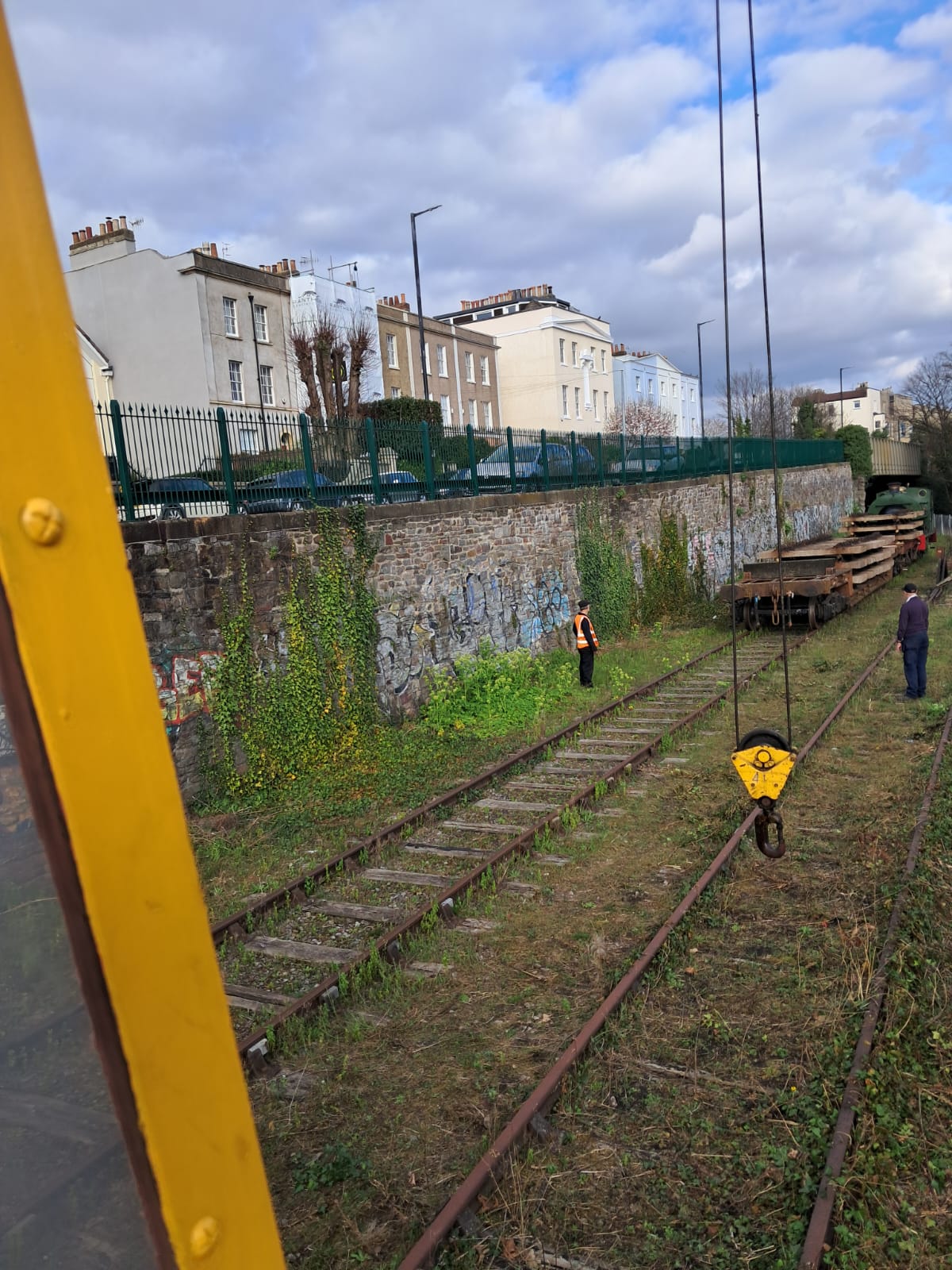

We put our cargo handling and crane direction training as seen at Docks Heritage Weekend to good use. Using the brothers (dual chain hooks) enables 2 sleepers to be loaded at a time and stacked neatly on the siding.

With that done and the wagon returned to the yard, in the afternoon the team were jacking and packing sleepers on the running line by the steam crane, as well as slewing the rails to ease the curve either side of the rail join. This required multiple jacks and a lot of sweat!

HENBURY will be in steam tomorrow morning so come on down and enjoy a train ride in the sunshine.

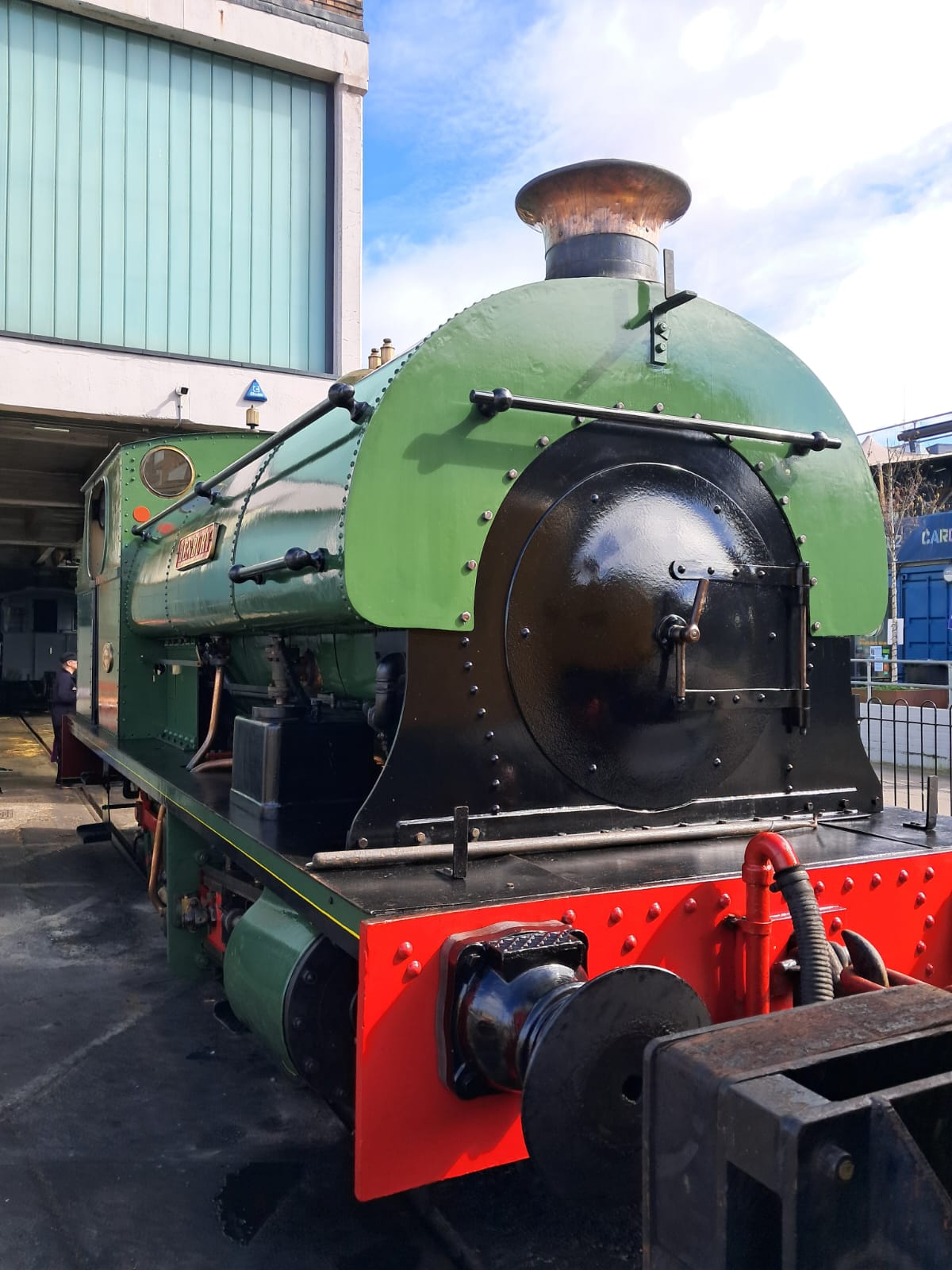

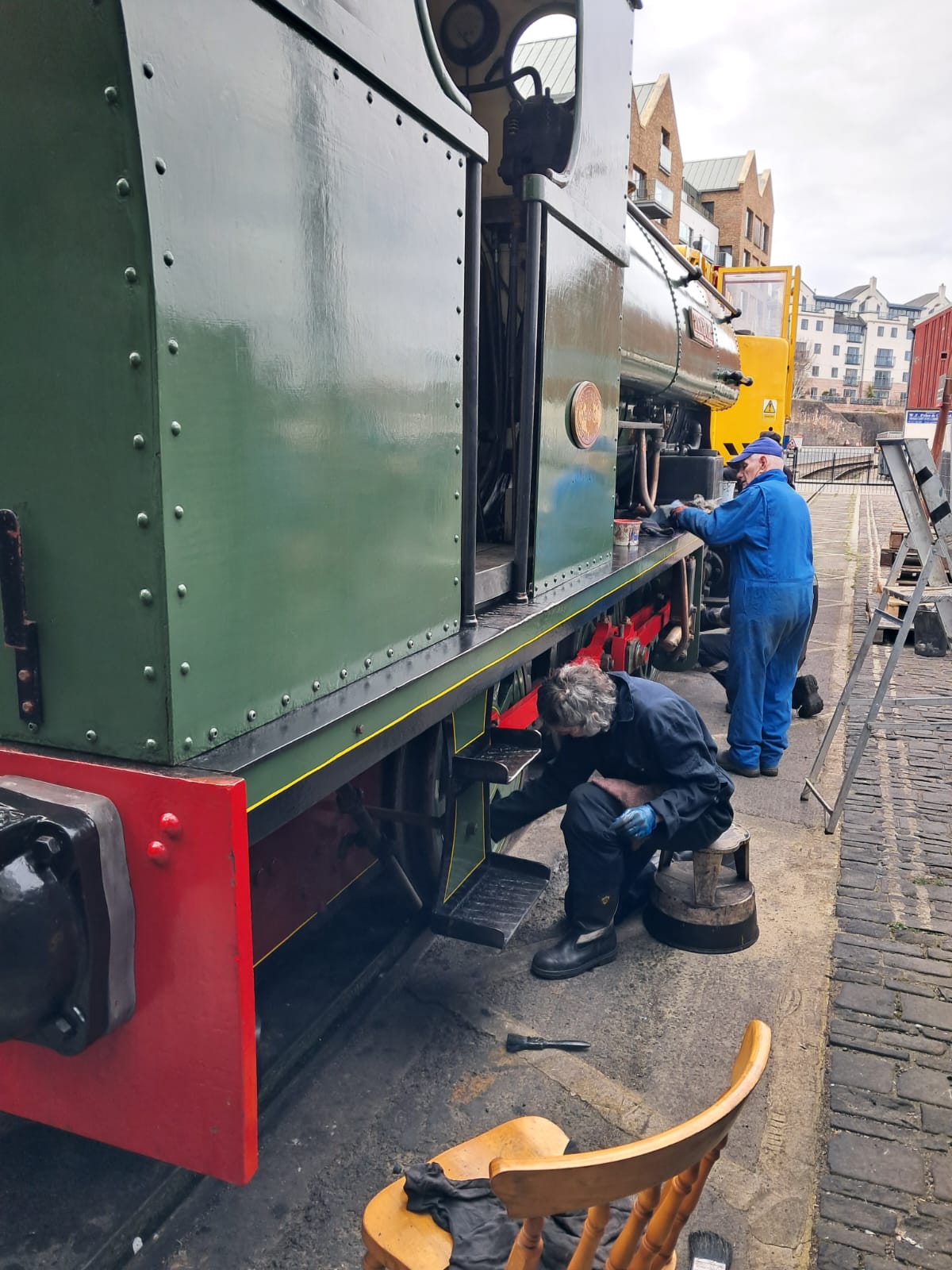

Henbury, back at work already

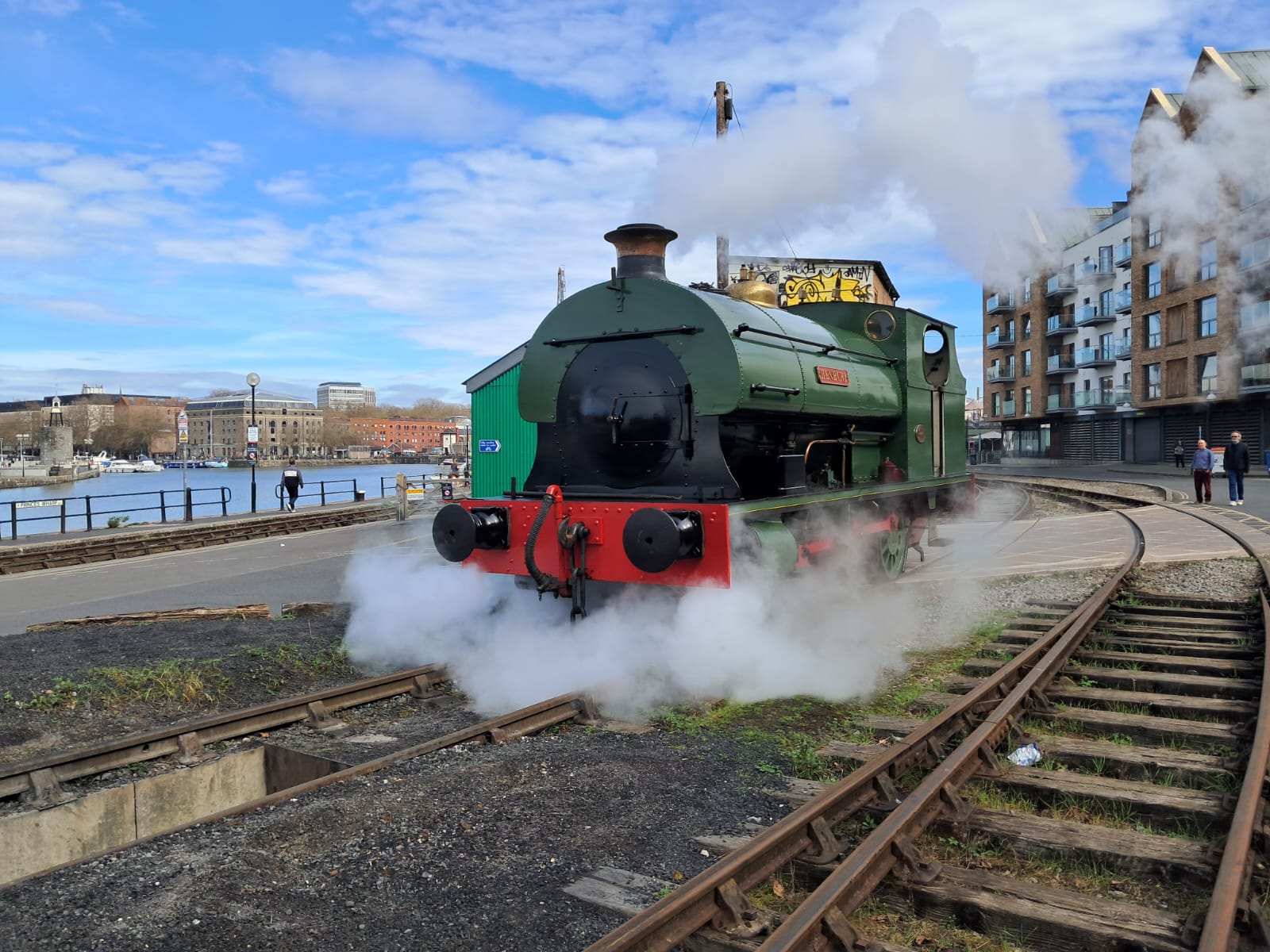

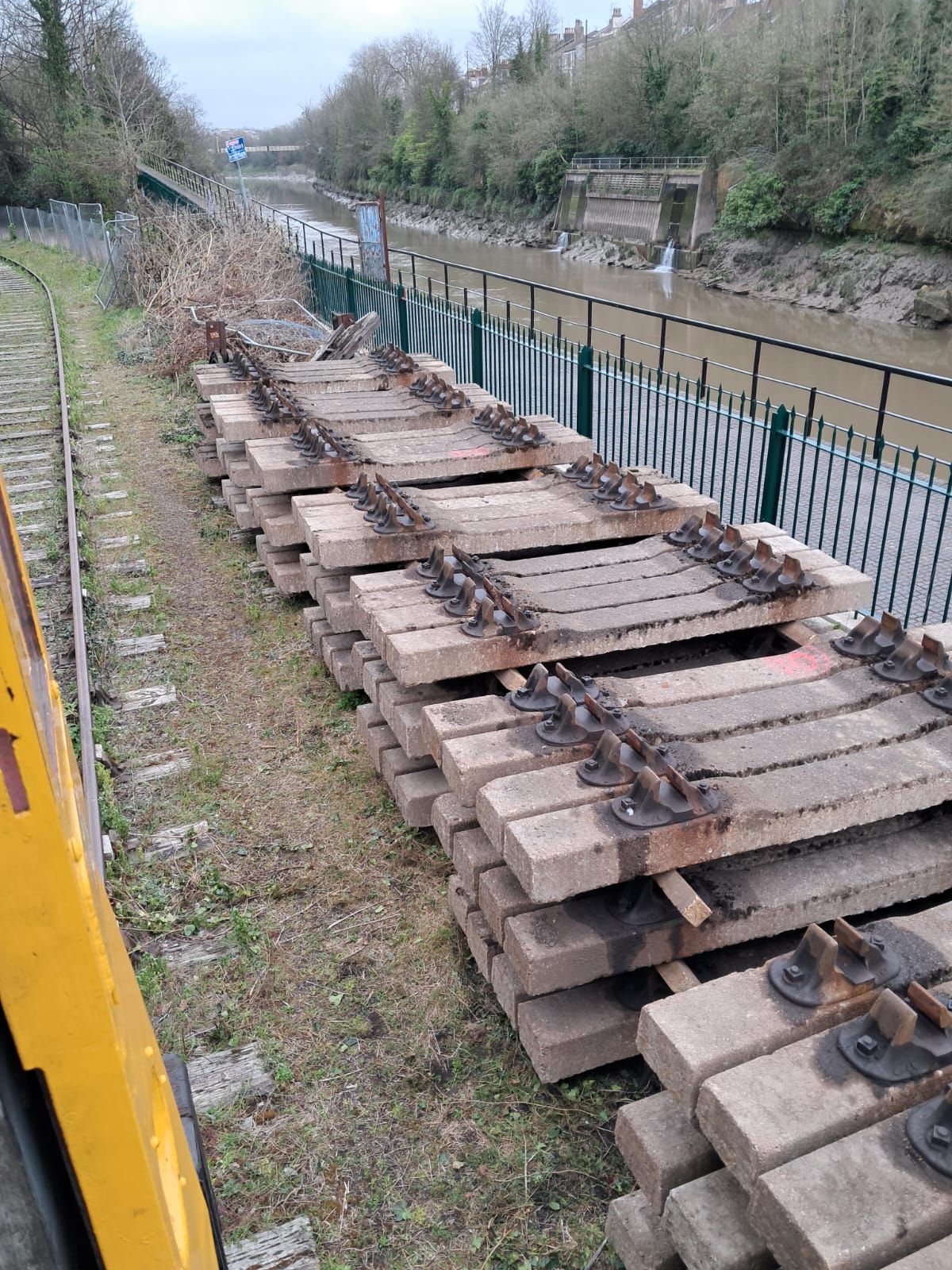

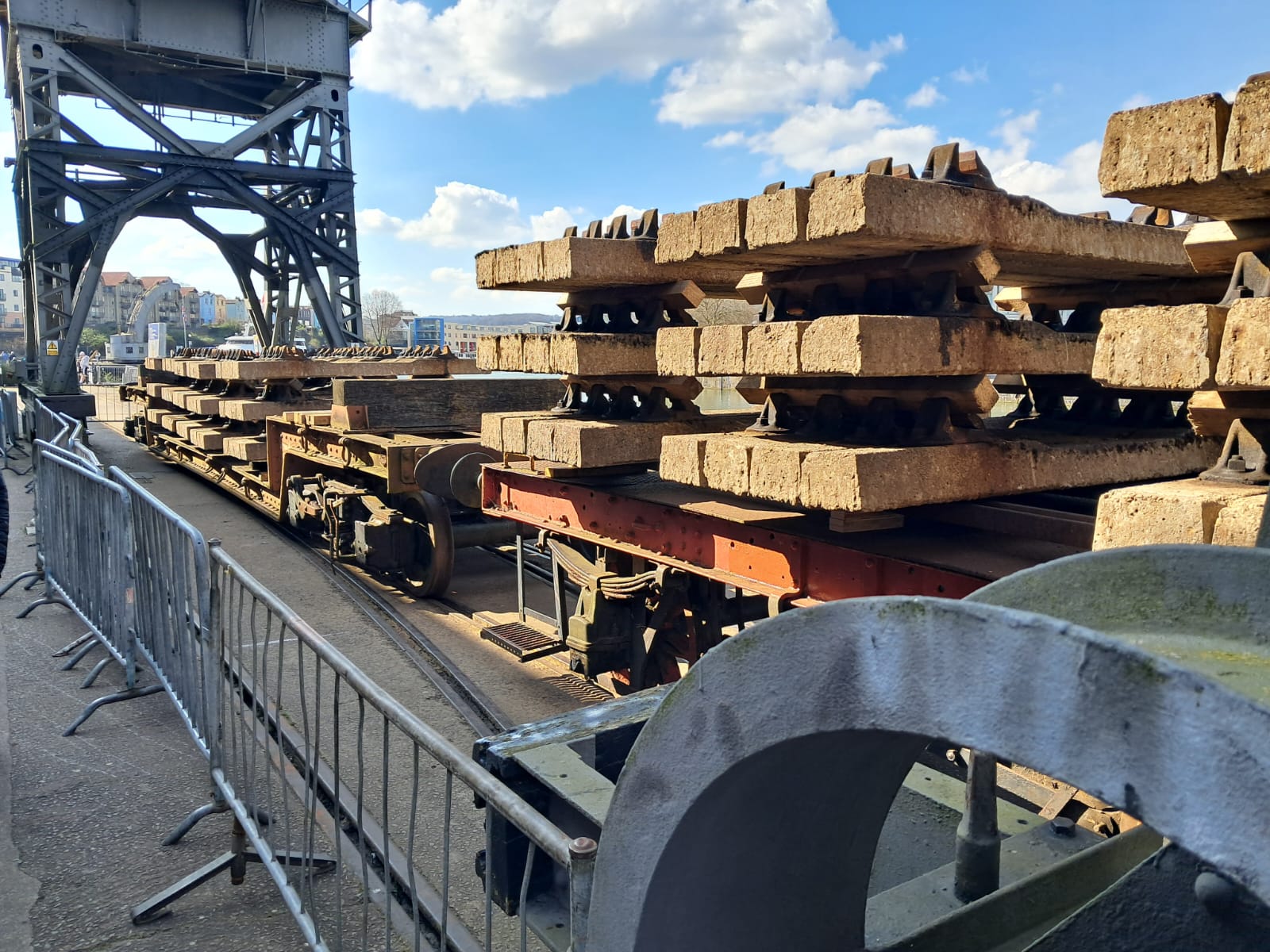

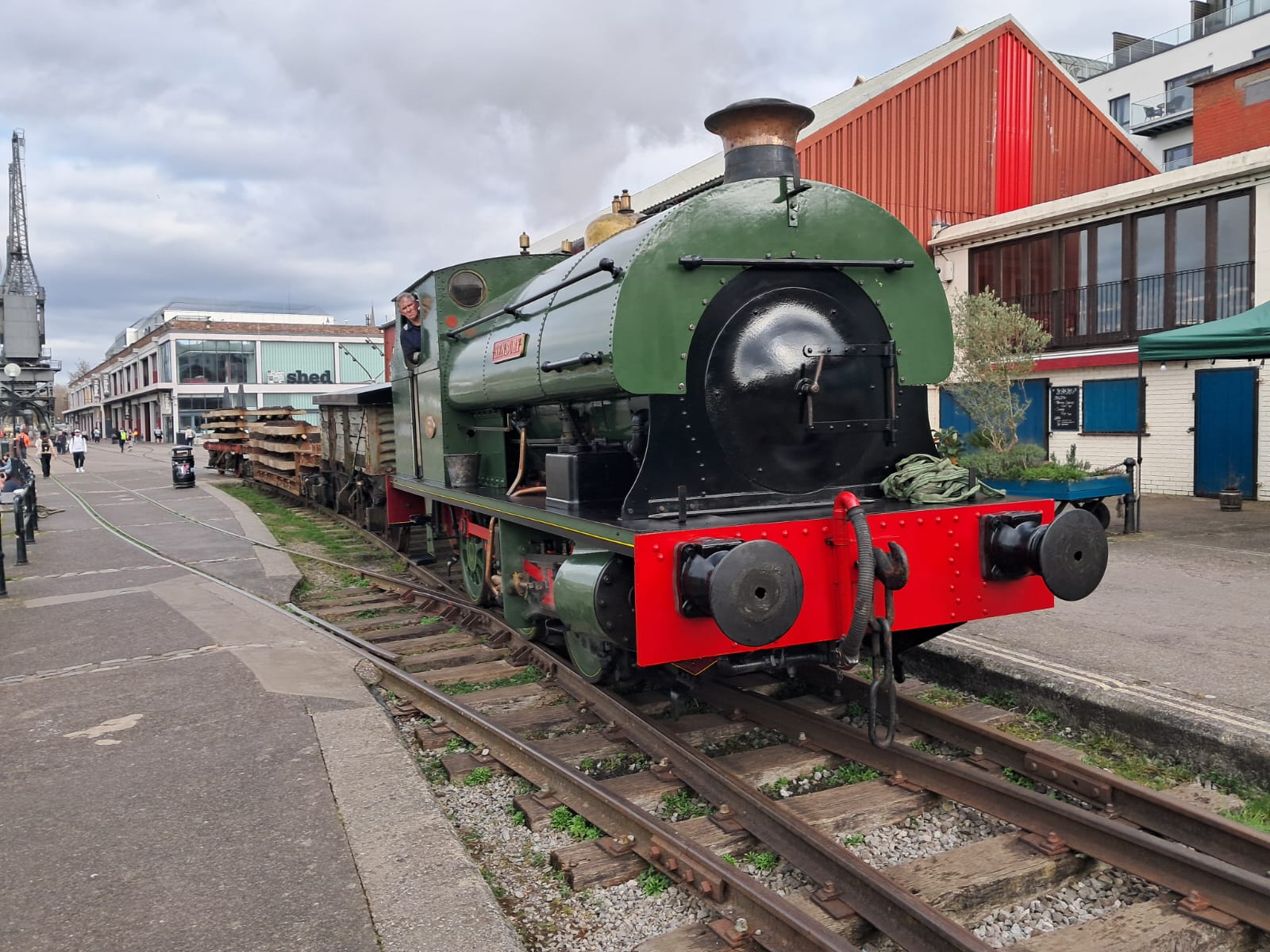

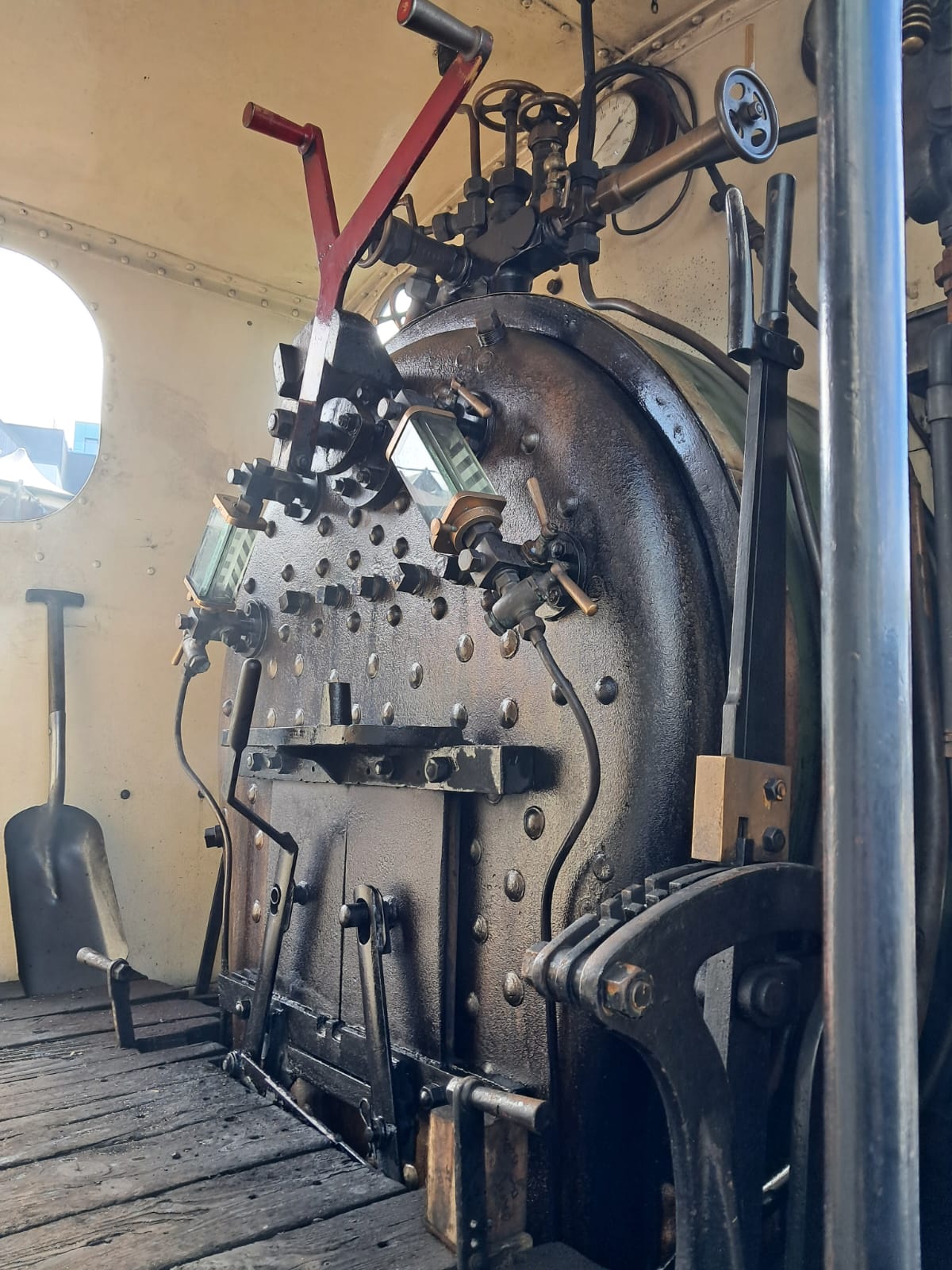

Henbury was steamed up this week and put to work straight away, shunting the well wagon and flat loaded with sleepers up the branch. The Coles Crane unloaded all these ‘new to us’ concrete sleepers on to Cumberland Siding.

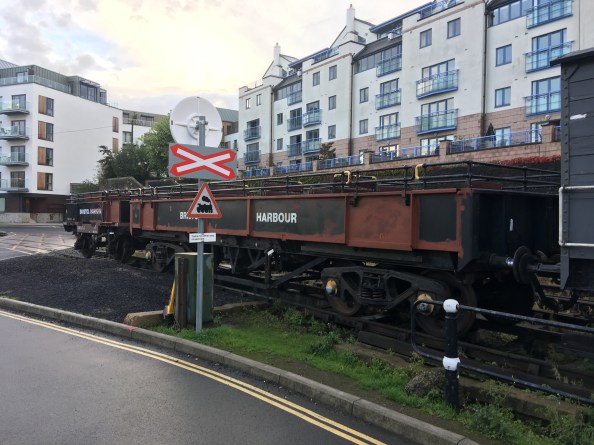

Just visible in one of the photos is the new lid for the coal wagon. These are to prevent unwanted access, protect the contents of the wagon and are designed to resemble wagon sheets whilst also being sturdy enough to resist the elements in the long term.
Thanks to Chris for these photos.

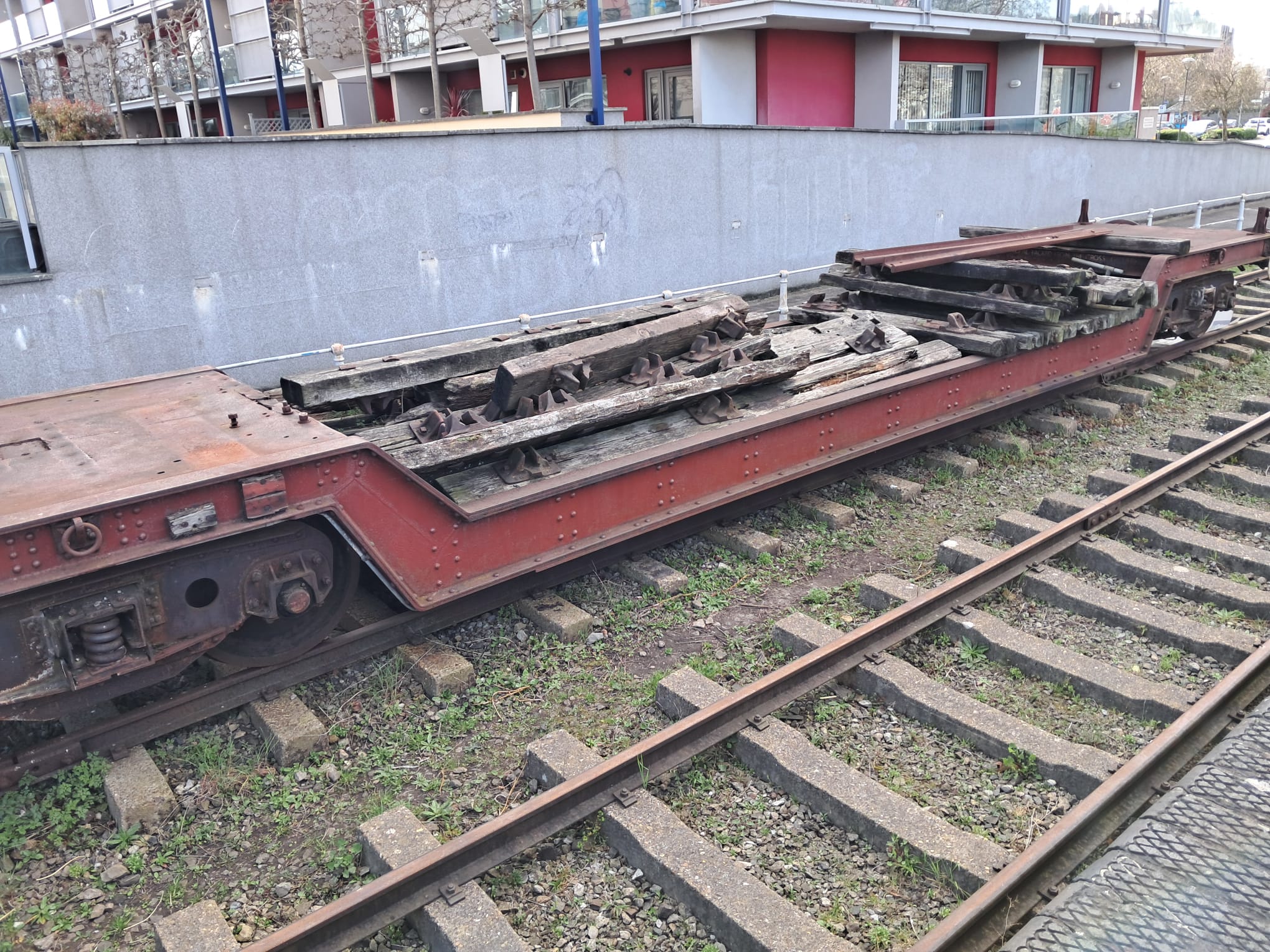

Volunteers and staff are working hard to get this done on top of regular maintenance. At the same time, the other well wagon was unloaded of redundant and life-expired wooden sleepers. Jobs like this go to show how much the wagon fleet is still needed by the railway to continue operating, so they are not just museum pieces, they are also working items of rolling stock.
This has freed up the two well wagons to receive another two lorry loads of concrete sleepers and chairs in the next few weeks.

TBT – Ashton Gate Station – 1970s/1980s

RMweb user Kevin aka Rivercider has tracked down some photos of the then-closed Ashton Gate Station site, with Ashton Meadows sidings on the BHR in the background.

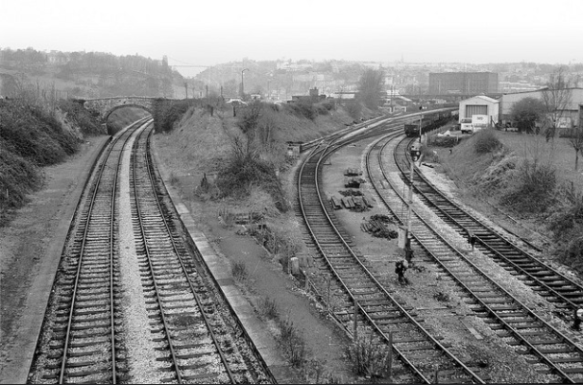

This one is from flickr user emmdee and shows an 08 shunting the yard.

Ashton Meadows – 1970s

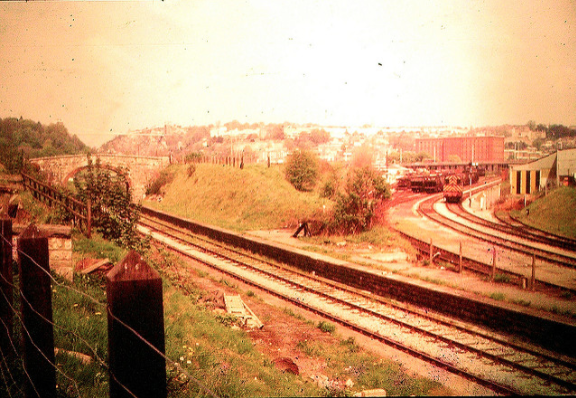

Flickr user Blue_Pelican_railway uploaded this one dated 1977, showing that the warehouse on the right has now had its rail connection severed. Nature is starting to take hold of the platforms.

Ashton Meadows – 1977

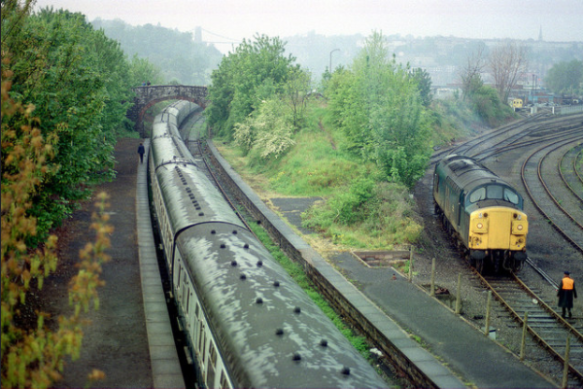

Blue_Pelican_railway also uploaded this shot from May 1984 with a Billy Graham train in the foreground, and a BR Class 37 in the yard. The engineers depot was still in use at this time. The growth of surrounding foliage in the intervening years is evident.

Ashton Meadows – 1984

Helston Railway Collects Rail

Some of the surplus track lifted during the remodelling of both ends of the line was collected by the volunteers at the Helston Railway in Cornwall.

This line is based at Trevarno, and they operate two Ruston diesel shunters very similar to the one based on the BHR.

The below photos appear here reposted from the Helston Railway’s Facebook Page.

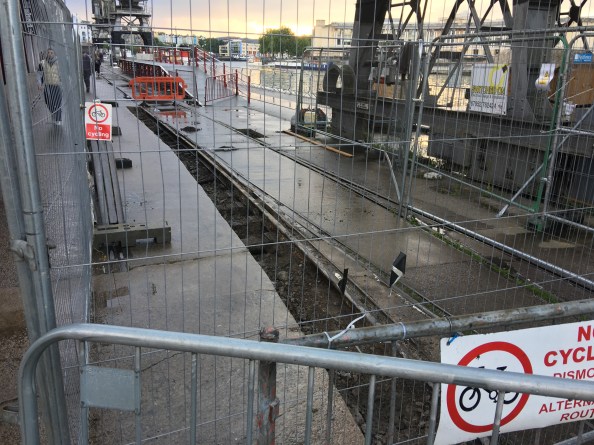

Level Crossing Work 2

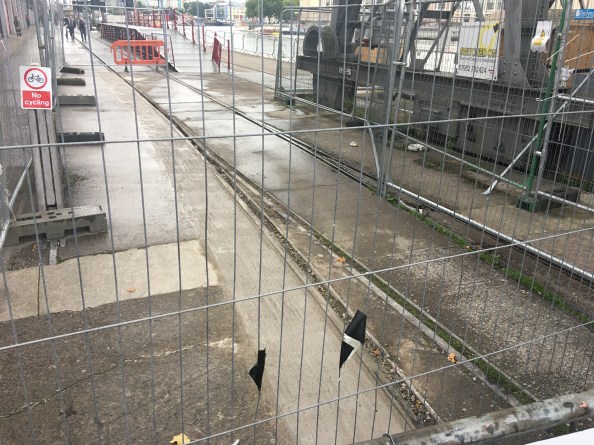

Both lines have now been lifted, and the trackbed excavated.

Whapping Wharf Development

As the housing at Sugar Quay is going up…
IMG_4808

… Other buildings are coming down. The former coal office (Latterly the office for the car park managers) has been demolished, along with the partially-collapsed roof of the building on the right.
IMG_4809

See this photo from February 2013 for a comparison

Over on the shed road, the old goods platform has been renovated and the entire wall treated to new paint. The remnants of the platform roof have been removed.

IMG_4776

IMG_4777

IMG_4774

Compare this last photo with the view back in 2009

Likewise, this view back toward the shed has changed so much, and is due to change again, as the access road is to be built and will need to cross the two yard tracks.

IMG_4779

This shot of the Ruston, taken from the same location, is about a year old.

Riverbank Subsidence and Repairs

The phrase ‘ship shape and Bristol fashion’ refers to the high tidal reach of the River Avon in Bristol, where ships would have to be strong to withstand being on the riverbed every 4 hours.
During the harsh tides this spring, the banks of the New Cut between Vauxhall Bridge and the Create Centre sagged a bit, requiring this section to be closed while repairs were carried out.

This photo shows the ‘sag’ in the track.
IMG_3734

The rails in this section were duly lifted, and the sleepers repositioned to form a ramp for construction equipment to get in.
IMG_4430

IMG_4434

IMG_4429
IMG_4539

Within two weeks the operation was completed, allowing ‘Henbury’ to propel the first passenger trains across the repaired section. A speed limit of 5mph is currently in place here.
IMG_4691
